K05

Wiper
Wiper
   KASTAŞ NO d(f8) D(H10) D1(H11) S1(-0/+0,2) S2 b
 K05-016 PU 16 24 22 4 5 7
 K05-018 PU 18 26 24 4 5 7
 K05-020 PU 20 28 26 4 5 7
 K05-022 PU 22 30 28 4 5 7
 K05-025 PU 25 33 31 4 5 7
 K05-028 PU 28 36 34 4 5 7
 K05-030 PU 30 38 36 4 5 7
 K05-032 PU 32 40 38 4 5 7
 K05-032/1 PU 32 40 38 5 6 7
 K05-035 PU 35 43 41 4 5 7
 K05-036 PU 36 44 42 4 5 7
 K05-040 PU 40 48 46 4 5 7
 K05-040/1 PU 40 48 45,1 5 6,3 7,8
 K05-040/2 PU 40 48 45,5 5 6 7,8
 K05-045 PU 45 53 51 4 5 7
 K05-045/1 PU 43 53 50,5 5 6 7,8
 K05-050 PU 50 58 56 4 5 7
 K05-050/1 PU 50 58 56 5 6 7
 K05-050/2 PU 50 58 55,5 5 6 7,8
 K05-055 PU 55 63 61 4 5 7
 K05-060 PU 60 68 66 4 5 7
 K05-063 PU 63 71 69 4 5 7
 K05-065 PU 65 73 71 4 5 7
 K05-065/1 PU 65 75 72 7 8 9,5
 K05-070 PU 70 78 76 4 5 7
 K05-070/2 PU 70 80 77 6,3 7,8 8,3
 K05-070/3 PU 70 80 77 6,3 7,8 9
 K05-075 PU 75 83 81 4 5 7
 K05-080 PU 80 88 86 4 5 7
 K05-085 PU 85 93 91 4 5 7
 K05-090 PU 90 98 96 4 5 7
 K05-100 PU 100 108 106 4 5 7
 K05-100/1 PU 100 115 109,6 9,5 12,1 13
 K05-110 PU 110 122 119 5,5 7 10
 K05-115 PU 115 127 124 5,5 7 10
 K05-120 PU 120 132 129 5,5 7 10
 K05-125 PU 125 140 135 9,5 12 13
 K05-125/1 PU 125 137 134 5,5 7 10
 K05-130 PU 130 142 139 5,5 7 10
 K05-140 PU 140 152 149 5,5 7 10
 K05-150 PU 150 162 159 5,5 7 10
 K05-160 PU 160 172 169 5,5 7 10
 K05-170 PU 170 182 179 5,5 7 10
 K05-180 PU 180 192 189 5,5 7 10
 K05-200 PU 200 212 209 5,5 7 10

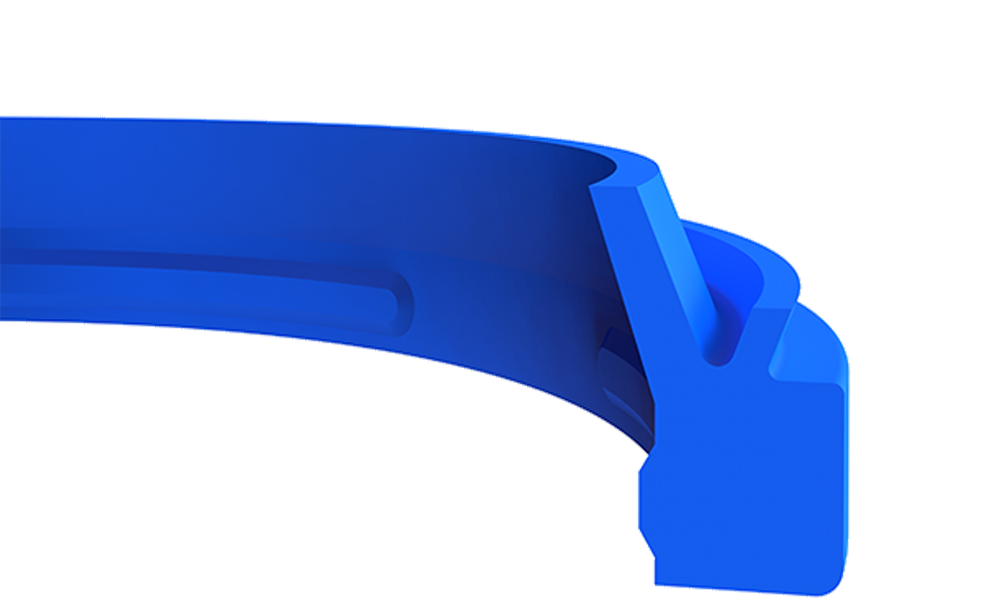

K05 is a single acting wiper ensuring that foreign particles are notintroduced into the hydraulic systems , avoiding wear and damageto all the internal components including seals.

PRODUCT ADVANTAGES
• Superior wiping performance
• Improved wiping effect of dirt , water spray , etc with the helpof the secondary sealing lip on the outer diameter
• Simple , easy-construction groove
• Wide range of dimensions
• No twisting in the housing
• Used in heavy conditions by the good tear and ruptureproperties of PU material.
• Easy installation
• Specially design to prevent big particles to go into the system

APPLICATION
Used especially in earth moving equipment , agriculturalmachinery , telescopic cylinders , cranes , mining equipment andloading platforms.
MATERIAL CODE
PU   94 SHORE A PU9401
OPERATING CONDITIONS
MEDIA Mineral oils (DIN 51524)  HFA and HFB HFC
TEMPERATURE -30°C +100°C +5°C +50°C -30°C +40°C
SPEED ≤ 1.0 m/sn ≤1.0 m/sn ≤1.0 m/sn
Note: The above data are maximum values and cannot be used at the same time.




SURFACE ROUGHNESS Ra Rmax
Sliding Surface Ød ≤0.4 μm ≤3.2 μm
Groove Base ØD ≤1.6 μm
≤10 μm
Groove Flanks S1 ≤3.2 μm ≤16 μm

INSTALLATION
Generally , wiper can be easily fitted into the closed housing by deforming into a kidney shape. It is very important that the assembly tools must be of soft material and have no sharp edges. Before installation the wiper must be oiled with system oil.

NOTES
K05 wipers are single acting and can be used with combination of all rod sealing elements.
