K10 - Double Wiper
  • General Features
  • Technicial Specifications
   KASTAŞ NO d (f8) D (H10) D1 (H9) D2 (H10) S1(-0/+0,2) S2 (-0/+0,2) F≥ b r
 K10-010 10 18 16 13,5 4 6 2 8 0,5
 K10-012 12 20 18 15,5 4 6 2 8 0,5
 K10-014 14 22 20 17,5 4 6 2 8 0,5
 K10-015 15 23 21 18,5 4 6 2 8 0,5
 K10-016 16 24 22 19,5 4 6 2 8 0,5
 K10-018 18 26 24 21,5 4 6 2 8 0,5
 K10-020 20 28 26 23,5 4 6 2 8 0,5
 K10-022 22 30 28 25,5 4 6 2 8 0,5
 K10-024 24 32 30 27,5 4 6 2 8 0,5
 K10-025 25 33 31 28,5 4 6 2 8 0,5
 K10-026 26 34 32 29,5 4 6 2 8 0,5
 K10-028 28 36 34 31,5 4 6 2 8 0,5
 K10-030 30 38 36 33,5 4 6 2 8 0,5
 K10-032 32 40 38 35,5 4 6 2 8 0,5
 K10-035 35 43 41 38,5 4 6 2 8 0,5
 K10-036 36 44 42 39,5 4 6 2 8 0,5
 K10-037 37 45 43 40,5 4 6 2 8 0,5
 K10-038 38 46 44 41,5 4 6 2 8 0,5
 K10-040 40 48 46 43,5 4 6 2 8 0,5
 K10-042 42 50 48 45,5 4 6 2 8 0,5
 K10-045 45 53 51 48,5 4 6 2 8 0,5
 K10-046 46 54 52 49,5 4 6 2 8 0,5
 K10-048 48 56 54 51,5 4 6 2 8 0,5
 K10-050 50 58 56 53,5 4 6 2 8 0,5
 K10-052 52 60 58 55,5 4 6 2 8 0,5
 K10-055 55 63 61 58,5 4 6 2 8 0,5
 K10-056 56 64 62 59,5 4 6 2 8 0,5
 K10-060 60 68 66 63,5 4 6 2 8 0,5
 K10-063 63 71 69 66,5 4 6 2 8 0,5
 K10-065 65 73 71 68,5 4 6 2 8 0,5
 K10-068 68 76 74 71,5 4 6 2 8 0,5
 K10-070 70 78 76 73,5 4 6 2 8 0,5
 K10-075 75 83 81 78,5 4 6 2 8 0,5
 K10-080 80 88 86 83,5 4 6 2 8 0,5
 K10-085 85 93 91 88,5 4 6 2 8 0,5
 K10-090 90 98 96 93,5 4 6 2 8 0,5
 K10-095 95 103 101 98,5 4 6 2 8 0,5
 K10-100 100 108 106 103,5 4 6 2 8 0,5
 K10-105 105 117 114 110 5,5 8,2 3 11 1
 K10-110 110 122 119 115 5,5 8,2 3 11 1
 K10-113 113 125 122 118 5,5 8,2 3 11 1
 K10-115 115 127 124 120 5,5 8,2 3 11 1
 K10-120 120 132 129 125 5,5 8,2 3 11 1
 K10-125 125 137 134 130 5,5 8,2 3 11 1
 K10-130 130 142 139 135 5,5 8,2 3 11 1
 K10-135 135 147 144 140 5,5 8,2 3 11 1
 K10-140 140 152 149 145 5,5 8,2 3 11 1
 K10-142 142 154 151 147 5,5 8,2 3 11 1
 K10-145 145 157 154 150 5,5 8,2 3 11 1
 K10-150 150 162 159 155 5,5 8,2 3 11 1
 K10-155 155 167 164 160 5,5 8,2 3 11 1
 K10-160 160 172 169 165 5,5 8,2 3 11 1
 K10-165 165 177 174 170 5,5 8,2 3 11 1
 K10-170 170 182 179 175 5,5 8,2 3 11 1
 K10-172 172 184 181 177 5,5 8,2 3 11 1
 K10-175 175 187 184 180 5,5 8,2 3 11 1
 K10-180 180 192 189 185 5,5 8,2 3 11 1
 K10-185 185 197 194 190 5,5 8,2 3 11 1
 K10-190 190 202 199 195 5,5 8,2 3 11 1
 K10-192 192 204 201 197 5,5 8,2 3 11 1
 K10-195 195 207 204 200 5,5 8,2 3 11 1
 K10-200 200 212 209 205 5,5 8,2 3 11 1
 K10-205 205 220 216 212 6,4 9,5 3 13 1
 K10-210 210 225 221 217 6,4 9,5 3 13 1
 K10-215 215 230 227 222 6,4 9,5 3 13 1
 K10-220 220 235 231 227 6,4 9,5 3 13 1
 K10-225 225 240 236 232 6,4 9,5 3 13 1
 K10-230 230 245 241 237 6,4 9,5 3 13 1
 K10-235 235 250 247 242 6,4 9,5 3 13 1
 K10-240 240 255 251 247 6,4 9,5 3 13 1
 K10-245 245 260 257 252 6,4 9,5 3 13 1
 K10-250 250 265 261 257 6,4 9,5 3 13 1
 K10-255 255 270 266 262 6,4 9,5 3 13 1
 K10-258 258 273 270 265 6,4 9,5 3 13 1
 K10-260 260 275 271 267 6,4 9,5 3 13 1
 K10-265 265 280 277 272 6,4 9,5 3 13 1
 K10-270 270 285 282 277 6,4 9,5 3 13 1
 K10-275 275 290 286 282 6,4 9,5 3 13 1
 K10-280 280 295 291 287 6,4 9,5 3 13 1
 K10-285 285 300 297 292 6,4 9,5 3 13 1
 K10-290 290 305 301 297 6,4 9,5 3 13 1
 K10-295 295 310 306 302 6,4 9,5 3 13 1
 K10-300 300 315 311 307 6,4 9,5 3 13 1
 K10-310 310 325 321 317 6,4 9,5 3 13 1
 K10-320 320 335 331 327 6,4 9,5 3 13 1
 K10-325 325 340 337 332 6,4 9,5 3 13 1
 K10-330 330 345 342 337 6,4 9,5 3 13 1
 K10-340 340 355 352 347 6,4 9,5 3 13 1
 K10-345 345 360 357 352 6,4 9,5 3 13 1
 K10-350 350 365 361 357 6,4 9,5 3 13 1
 K10-355 355 370 367 362 6,4 9,5 3 13 1
 K10-360 360 375 371 367 6,4 9,5 3 13 1
 K10-370 370 385 381 377 6,4 9,5 3 13 1
 K10-400 400 415 412 407 6,4 9,5 3 13 1
 K10-450 450 465 462 457 6,4 9,5 3 13 1
 K10-460 460 475 472 467 6,4 9,5 3 13 1
 K10-500 500 515 512 507 6,4 9,5 3 13 1

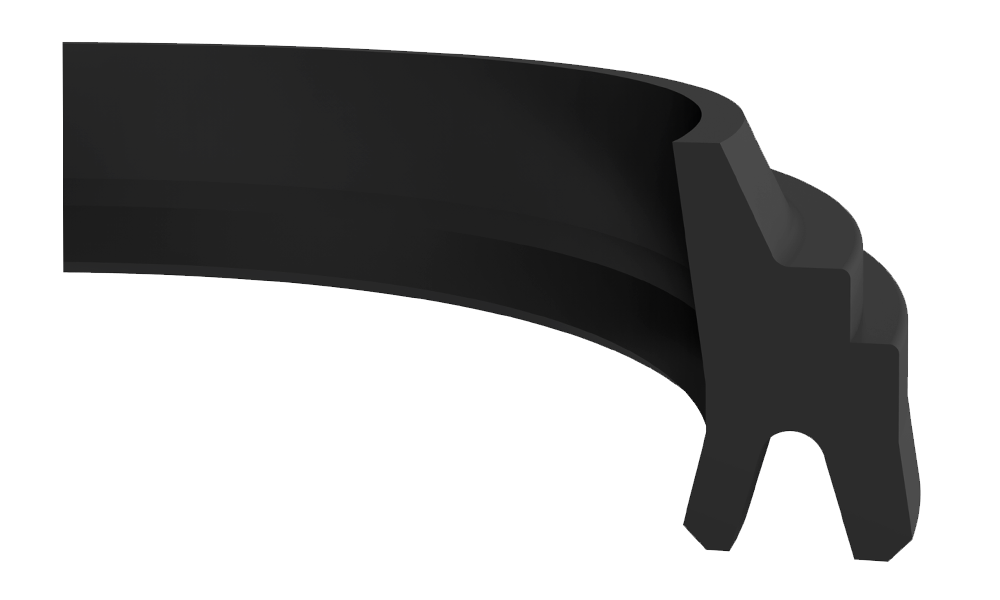

K10 is a single acting double wiper ensuring that foreign particles are not introduced into the hydraulic cylinders. The lip is designed in a particular way that it reliably wipes off  the dirt but leaves a residual oil film on the rod.

PRODUCT ADVANTAGES
• Good scraping effect
• Wide range of dimensions
• No twisting in the housing
• Wiper lip reliably wipes away dirt and leaves a residual oil film on the retracting rod.
• Double lip makes additional protection to prevent the particles to enter into the cylinder
• Easy installation

APPLICATION
Construction machinery , forklift-trucks , injection moulding machines , agricultural machinery and standard cylinders.

MATERIAL   CODE
NBR 90 SHORE A NB9001
OPERATING CONDITIONS
MEDIA Mineral oils (DIN 51524)  HFA and HFB HFC
TEMPERATURE -30°C +105°C +5°C +60°C -30°C +60°C
SPEED ≤1.0 m/sn ≤1.0 m/sn ≤1.0 m/sn
Note: The above data are maximum values and cannot be used at the same time.



SURFACE ROUGHNESS Ra Rmax
Sliding Surface  Ød ≤0.3 μm ≤3.2 μm
Groove Base ØD ≤1.8 μm ≤10 μm
Groove Flanks S1 ≤3 μm ≤16 μm

INSTALLATION
Generally , wiper can be easily fitted into the closed housing by deforming into a kidney shape. It is very important that the assembly tools must be of soft material and have no sharp edges. Before installation the wiper must be oiled with system oil.

NOTES
K10 double wiper should be used in combination of suitable rod seals to avoid hydrodynamic pressure or pressure relieving bore between seal and wiper should be constructed to prevent the build up pressures (See section; Hydraulic Sealing Elements - Sample Designs). K10 wipers can be produced on request in FKM material for special applications that require high temperatures.
