K52

K52 - Pneumatic Rod Seal
   KASTAŞ NO NBR PU d (f9) D (H11) D1 (-0/+0,2) B (-0/+0,2) B1 b
 K52-004 NBR PU 4 8,2 6,5 3 4,8 4
 K52-004/1 NBR   4 7 5,6 2,7 3,2 2,8
 K52-005 NBR PU 5 8 6,6 2,7 3,2 3
 K52-006 NBR PU 6 11,2 9 4 5,2 5
 K52-008 NBR PU 8 14,2 12 4 5,2 5
 K52-010 NBR PU 10 16,2 14 4,5 6 5,5
 K52-010/1   PU 10 14 12.6 3.4 4.5 3.7
 K52-012 NBR PU 12 16,5 13,7 3,7 4,8 4
 K52-012/2   PU 12 18 14,8 4 6 4,8
 K52-016 NBR PU 16 20,5 17,7 3,7 4,8 4
 K52-016/1   PU 16 23 19 4,2 6,2 6
 K52-018   PU 18 22.5 19.7 3.7 4.8 4
 K52-020   PU 20 25 22,2 4,15 5,2 4,6
 K52-020/1   PU 20 25 22,2 3,2 4,6 4,4
 K52-025   PU 25 30 26,9 4,15 5,2 4,6
 K52-030   PU 30 35,5 31,9 4,55 6 4,8

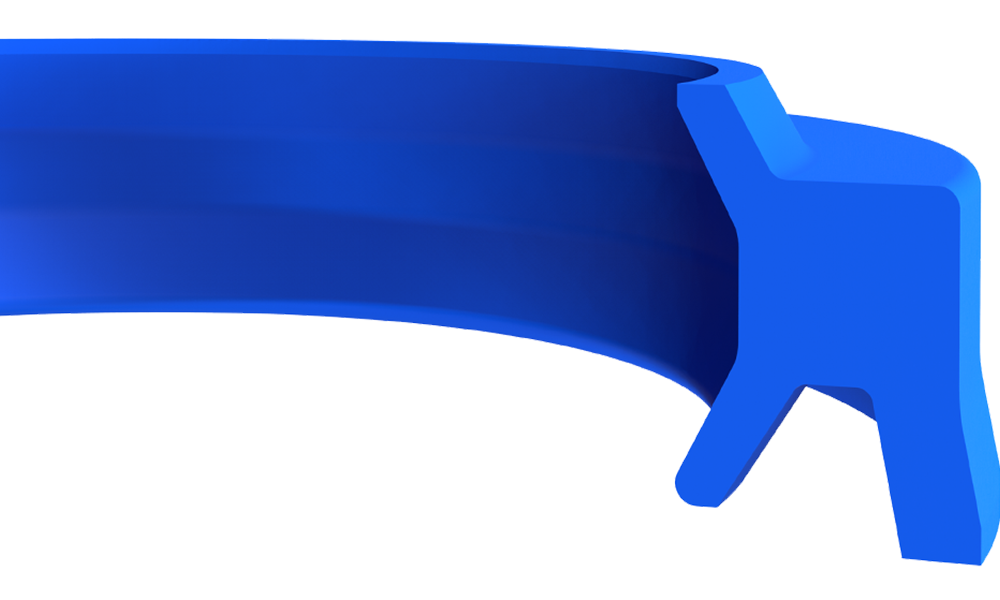

K52 is a single acting pneumatic wiper ensuring that foreignparticles are not introduced into the hydraulic cylinders. The lip isdesigned in a particular way that it functions as a rod seal andwiper.

PRODUCT ADVANTAGES
• Superior sealing effect
• Superior wiping effect
• Low static and dynamic friction
• Minimal space requirement
• High wear resistance

APPLICATION
Compact and special small cylinders.
MATERIAL   CODE
NBR 90 SHORE A  NB9001
PU    92 SHORE A  PU9201
OPERATING CONDITIONS
NBR
MEDIA Prepared , dried and de-oiled compressed air
TEMPERATURE -30°C +105 °C
PRESSURE ≤12 Bar
SPEED ≤1.0 m/sn
PU
MEDIA Prepared , dried and de-oiled compressed air
TEMPERATURE -30°C +80 °C
PRESSURE ≤16 Bar
SPEED ≤1.0 m/sn
Note: The above data are maximum values and cannot be used at the same time.



SURFACE ROUGHNESS Rmax
Sliding Surface  Ød ≤4 μm
Groove Base  ØD ≤10 μm
Groove Flanks  B ≤15 μm

INSTALLATION
It can be assembled into closed groove by hand. K52 does not need additional element such as circlip for axial fitting within the housing. We recommend using special assembly tool. It is very important that the assembly tools must be of soft material and have no sharp edges. Before installation the sealing element must be oiled with system oil.

NOTES
For special applications that require high temperatures , K52 can be produced in FKM material.
