K68 - Rod Guide Ring
  • General Features
  • Technicial Specifications
   KASTAŞ NO d (f8) D (H8) b B(-0/+0,2) D1 (H9) r k
 K68-008 8 11 3,1 3,3 8,4 0,2 1
 K68-015 15 20 5,5 5,7 15,4 0,2 1
 K68-016 16 20 9,4 9,6 16,4 0,2 1
 K68-016/1 16 19 5,8 6 16,4 0,2 1
 K68-018 18 22 9,4 9,6 18,4 0,2 1
 K68-018/1 18 22 14,8 15 18,4 0,2 1
 K68-020 20 24 9,4 9,6 20,4 0,2 1
 K68-020/1 20 26 3,8 4 20,4 0,2 1
 K68-020/2 20 26 9,5 9,7 20,4 0,2 1
 K68-020/3 20 25 5,4 5,6 20,4 0,2 1
 K68-022 22 26 9,4 9,6 22,5 0,2 1
 K68-022/1 22 25 4 4,2 22,5 0,2 1
 K68-022/2 22 27 9,5 9,7 22,5 0,2 1
 K68-025 25 31 9,4 9,6 25,5 0,2 1
 K68-025/1 25 29 9,4 9,6 25,5 0,2 1
 K68-025/2 25 30 5,4 5,6 25,5 0,2 1
 K68-025/3 25 31 9,7 9,9 25,5 0,2 1
 K68-025/4 25 29 6,2 6,4 25,5 0,2 1
 K68-026 26 32 9,8 10 26,5 0,2 1
 K68-027 27 32 5,4 5,6 27,5 0,2 1
 K68-027/1 27 31 9,4 9,6 27,5 0,2 1
 K68-028 28 32 9,5 9,7 28,5 0,2 1
 K68-028/2 28 33 6,2 6,4 28,5 0,2 1
 K68-028/3 28 33 5,5 5,7 28,5 0,2 1
 K68-028/4 28 34 9,5 9,7 28,5 0,2 1
 K68-028/5 28 33 9,5 9,7 28,5 0,2 1
 K68-028/6 28 32 6,2 6,4 28,5 0,2 1
 K68-030 30 35 15 15,2 30,5 0,2 1
 K68-030/1 30 34 9,5 9,7 30,5 0,2 1
 K68-030/2 30 36 9,3 9,5 30,5 0,2 1
 K68-030/3 30 35 9,5 9,7 30,5 0,2 1
 K68-030/4 30 35 8 8,2 30,5 0,2 1
 K68-030/5 30 35 5,4 5,6 30,5 0,2 1
 K68-032 32 36 9,5 9,7 32,5 0,2 1
 K68-032/1 32 38 9,4 9,6 32,5 0,2 1
 K68-032/2 32 37 11 11,2 32,5 0,2 1
 K68-032/3 32 37 5,4 5,6 32,5 0,2 1
 K68-032/5 32 36 6,2 6,4 32,5 0,2 1
 K68-035 35 40 15 15,2 35,5 0,2 1
 K68-035/1 35 39 9,5 9,7 35,5 0,2 1
 K68-035/2 35 40 9,7 9,9 35,5 0,2 1
 K68-035/3 35 41 9,4 9,6 35,5 0,2 1
 K68-035/4 35 40 5,4 5,6 35,5 0,2 1
 K68-035/5 35 40 6,1 6,3 35,5 0,2 1
 K68-035/6 35 40 9,5 9,7 35,5 0,2 1
 K68-035/7 35 41 19,8 20 35,5 0,2 1
 K68-035/8 35 39 6,3 6,5 35,5 0,2 1
 K68-036 36 40 9,5 9,7 36,5 0,2 1
 K68-036/1 36 42 9,6 9,8 36,5 0,2 1
 K68-036/2 36 41 9,5 9,7 36,5 0,2 1
 K68-036/3 36 41 5,4 5,6 36,5 0,2 1
 K68-036/4 36 40 5,9 6,1 36,5 0,2 1
 K68-036/5 36 40 6,2 6,4 36,5 0,2 1
 K68-038 38 42 9,4 9,6 38,5 0,2 1
 K68-038/1 38 41 20,8 21,1 38,5 0,2 1
 K68-038/2 38 42 4 4,2 38,5 0,2 1
 K68-039 39 44 15,2 15,4 39,5 0,2 1
 K68-039/1 39 45 9,8 10 39,5 0,2 1
 K68-040 40 45 15 15,2 40,5 0,2 1,5
 K68-040/1 40 44 9,5 9,7 40,5 0,2 1,5
 K68-040/10 40 46 9,5 9,7 40,5 0,2 1,5
 K68-040/11 40 45 9,7 9,9 40,5 0,2 1,5
 K68-040/2 40 46 9,6 9,8 40,5 0,2 1,5
 K68-040/3 40 45 9,5 9,7 40,5 0,2 1,5
 K68-040/4 40 45 20 20,2 40,5 0,2 1,5
 K68-040/5 40 45 4,8 5 40,5 0,2 1,5
 K68-040/6 40 45 5,4 5,6 40,5 0,2 1,5
 K68-040/7 40 46 12,8 13 40,5 0,2 1,5
 K68-040/8 40 44 6,3 6,5 40,5 0,2 1,5
 K68-040/9 40 45 9,6 9,8 40,5 0,2 1,5
 K68-044,45 44,45 50,8 19,05 19,25 44,95 0,2 1,5
 K68-045 45 50 15 15,2 45,5 0,2 1,5
 K68-045/1 45 51 9,5 9,7 45,5 0,2 1,5
 K68-045/2 45 50 9,5 9,7 45,5 0,2 1,5
 K68-045/3 45 51 12,5 12,7 45,5 0,2 1,5
 K68-045/4 45 49 19,8 20 45,5 0,2 1,5
 K68-045/5 45 50 5,4 5,6 45,5 0,2 1,5
 K68-045/6 45 50 9,7 9,9 45,5 0,2 1,5
 K68-046/1 46 50 4 4,2 46,5 0,2 1,5
 K68-048 48 54 9,6 9,8 48,5 0,2 1,5
 K68-048/1 48 53 9,4 9,6 48,5 0,2 1,5
 K68-050 50 55 15 15,2 50,5 0,2 1,5
 K68-050,8 50,8 57,15 19,05 19,25 51,3 0,2 1,5
 K68-050/1 50 56 9,5 9,7 50,5 0,2 1,5
 K68-050/2 50 56 12,5 12,7 50,5 0,2 1,5
 K68-050/3 50 55 8 8,2 50,5 0,2 1,5
 K68-050/4 50 55 20 20,2 50,5 0,2 1,5
 K68-050/5 50 55 9,5 9,7 50,5 0,2 1,5
 K68-050/6 50 55 5,4 5,6 50,5 0,2 1,5
 K68-050/8 50 55 9,7 9,9 50,5 0,2 1,5
 K68-055 55 60 15 15,2 55,5 0,2 2
 K68-055/1 55 61 9,5 9,7 55,5 0,2 2
 K68-055/2 55 60 8 8,2 55,5 0,2 2
 K68-055/3 55 60 20 20,2 55,5 0,2 2
 K68-055/4 55 61 12,5 12,7 55,5 0,2 2
 K68-055/5 55 60 9,5 9,7 55,5 0,2 2
 K68-055/6 55 60 5,4 5,6 55,5 0,2 2
 K68-055/7 55 60 5,6 5,8 55,5 0,2 2
 K68-055/8 55 60 9,7 9,9 55,5 0,2 2
 K68-056 56 62 12,5 12,7 56,5 0,2 2
 K68-056/1 56 60 9,6 9,8 56,5 0,2 2
 K68-056/2 56 61 9,5 9,7 56,5 0,2 2
 K68-056/3 56 60 7,9 8,1 56,5 0,2 2
 K68-056/4 56 62 20 20,2 56,5 0,2 2
 K68-058 58 63 9,5 9,7 58,5 0,2 2
 K68-058/1 58 63 5,4 5,6 58,5 0,2 2
 K68-058/3 58 63 15 15,2 58,5 0,2 2
 K68-060 60 65 15 15,2 60,5 0,2 2
 K68-060/1 60 66 12,5 12,7 60,5 0,2 2
 K68-060/10 60 65 9,3 9,5 60,5 0,2 2
 K68-060/11 60 65 9,7 9,9 60,5 0,2 2
 K68-060/2 60 65 9,5 9,7 60,5 0,2 2
 K68-060/3 60 65 20 20,2 60,5 0,2 2
 K68-060/4 60 65 8 8,2 60,5 0,2 2
 K68-060/5 60 66 9,7 9,9 60,5 0,2 2
 K68-060/6 60 65 5,3 5,5 60,5 0,2 2
 K68-060/7 60 64 19,3 19,5 60,5 0,2 2
 K68-060/8 60 64 10 10,2 60,5 0,2 2
 K68-063 63 69 12,5 12,7 63,5 0,2 2,5
 K68-063/1 63 68 9,5 9,7 63,5 0,2 2,5
 K68-063/2 63 67 6,3 6,5 63,5 0,2 2,5
 K68-063/4 63 69 30 30,5 63,5 0,2 2,5
 K68-065 65 70 15 15,2 65,5 0,2 2,5
 K68-065/1 65 71 12,5 12,7 65,5 0,2 2,5
 K68-065/2 65 70 5,4 5,6 65,5 0,2 2,5
 K68-065/3 65 70 6,8 7 65,5 0,2 2,5
 K68-065/4 65 70 9,7 9,9 65,5 0,2 2,5
 K68-067 67 72 5,4 5,6 67,5 0,2 2,5
 K68-069,85 69,85 76,2 19,05 19,25 70,05 0,2 2,5
 K68-070 70 75 15 15,2 70,5 0,2 2,5
 K68-070/1 70 76 12,5 12,7 70,5 0,2 2,5
 K68-070/2 70 75 5,4 5,6 70,5 0,2 2,5
 K68-070/3 70 76 25 25,5 70,5 0,2 2,5
 K68-070/4 70 76 10 10,2 70,5 0,2 2,5
 K68-070/5 70 75 9,5 9,7 70,5 0,2 2,5
 K68-070/8 70 75 9,7 9,9 70,5 0,2 2,5
 K68-072 72 80 6 6,2 72,5 0,2 2,5
 K68-072/1 72 78 12,3 12,5 72,5 0,2 2,5
 K68-075 75 80 15 15,2 75,5 0,2 2,5
 K68-075/1 75 81 12,5 12,7 75,5 0,2 2,5
 K68-075/2 75 80 8 8,2 75,5 0,2 2,5
 K68-075/3 75 80 9,5 9,7 75,5 0,2 2,5
 K68-075/4 75 80 5,4 5,6 75,5 0,2 2,5
 K68-075/7 75 81 19 19,2 75,5 0,2 2,5
 K68-075/8 75 80 9,7 9,9 75,5 0,2 2,5
 K68-080 80 85 15 15,2 80,5 0,2 2,5
 K68-080/1 80 86 12,5 12,7 80,5 0,2 2,5
 K68-080/2 80 84 9,3 9,5 80,5 0,2 2,5
 K68-080/3 80 85 9,5 9,7 80,5 0,2 2,5
 K68-080/4 80 86 24,8 25,3 80,5 0,2 2,5
 K68-080/5 80 85 19,8 20 80,5 0,2 2,5
 K68-080/6 80 84 8,1 8,3 80,5 0,2 2,5
 K68-080/7 80 86 30 30,5 80,5 0,2 2,5
 K68-080/8 80 85 9,7 9,9 80,5 0,2 2,5
 K68-085 85 90 15 15,2 85,5 0,2 2,5
 K68-085/1 85 91 12,5 12,7 85,5 0,2 2,5
 K68-085/2 85 90 5,5 5,7 85,5 0,2 2,5
 K68-085/3 85 90 9,7 9,9 85,5 0,2 2,5
 K68-086 86 92 12,5 12,7 86,5 0,2 2,5
 K68-090 90 95 15 15,2 90,5 0,2 2,5
 K68-090/1 90 96 12,5 12,7 90,5 0,2 2,5
 K68-090/2 90 95 9,5 9,7 90,5 0,2 2,5
 K68-090/3 90 95 5,6 5,8 90,5 0,2 2,5
 K68-090/4 90 94 15 15,2 90,5 0,2 2,5
 K68-090/7 90 96 30 30,5 90,5 0,2 2,5
 K68-090/8 90 95 9,7 9,9 90,5 0,2 2,5
 K68-094 94 100 12,8 13 100,5 0,2 2,5
 K68-095 95 100 15 15,2 95,5 0,2 2,5
 K68-095/1 95 101 12,5 12,7 95,5 0,2 2,5
 K68-095/2 95 100 9,5 9,7 95,5 0,2 3,5
 K68-095/3 95 100 5,4 5,6 95,5 0,2 3,5
 K68-100 100 105 15 15,2 100,5 0,2 3,5
 K68-100/1 100 106 12,5 12,7 100,5 0,2 3,5
 K68-100/2 100 104 15 15,2 100,5 0,2 2,5
 K68-100/3 100 105 9,7 9,9 100,5 0,2 3,5
 K68-100/4 100 104 14,8 15 100,5 0,2 3,5
 K68-104 104 110 10 10,2 104,6 0,2 3,5
 K68-105 105 110 15 15,2 105,6 0,2 3,5
 K68-105/1 105 110 8 8,2 105,6 0,2 3,5
 K68-105/2 105 110 9,5 9,7 105,6 0,2 3,5
 K68-105/4 105 115 17 17,2 105,6 0,2 3,5
 K68-105/5 105 110 9,7 9,9 105,6 0,2 3,5
 K68-110 110 116 12,5 12,7 110,6 0,2 3,5
 K68-110/1 110 115 9,5 9,7 110,6 0,2 3,5
 K68-110/2 110 115 20 20,2 110,6 0,2 3,5
 K68-110/3 110 116 7,5 7,7 110,6 0,2 3,5
 K68-115 115 120 15 15,2 115,6 0,2 3,5
 K68-115/1 115 121 12,5 12,7 115,6 0,2 3,5
 K68-115/2 115 120 9,5 9,7 115,6 0,2 3,5
 K68-120 120 125 15 15,2 120,6 0,2 3,5
 K68-120/1 120 126 12,5 12,7 120,6 0,2 3,5
 K68-120/2 120 125 9,5 9,7 120,6 0,2 3,5
 K68-120/3 120 125 9,7 9,9 120,6 0,2 3,5
 K68-125 125 131 12,5 12,7 125,6 0,2 3,5
 K68-125/1 125 130 15 15,2 125,6 0,2 3,5
 K68-125/2 125 130 7 7,2 125,6 0,2 3,5
 K68-125/3 125 130 9,7 9,9 125,6 0,2 3,5
 K68-130 130 135 15 15,2 130,6 0,2 3,5
 K68-130/1 130 136 12,5 12,7 130,6 0,2 3,5
 K68-135 135 140 9,5 9,7 135,6 0,2 3,5
 K68-135/1 135 140 15 15,2 135,6 0,2 3,5
 K68-140 140 145 15 15,2 140,6 0,2 3,5
 K68-140/1 140 146 12,5 12,7 140,6 0,2 3,5
 K68-140/2 140 145 9,7 9,9 140,5 0,2 3,5
 K68-146 146 150 10 10,2 146,6 0,2 3,5
 K68-150 150 155 15 15,2 150,6 0,2 3,5
 K68-150/1 150 156 12,5 12,7 150,6 0,2 3,5
 K68-150/2 150 154 15 15,2 150,6 0,2 3,5
 K68-150/4 150 160 34,8 35,3 150,6 0,2 3,5
 K68-150/5 150 155 24,8 25,3 150,6 0,2 3,5
 K68-150/6 150 156 19 19,2 150,6 0,2 3,5
 K68-155 155 160 15 15,2 155,6 0,2 3,5
 K68-160 160 165 15 15,2 160,6 0,2 3,5
 K68-160/1 160 166 12,5 12,7 160,6 0,2 3,5
 K68-160/2 160 166 18,9 19,1 160,6 0,2 3,5
 K68-170 170 175 15 15,2 170,6 0,2 3,5
 K68-175 175 180 9,5 9,7 175,6 0,2 3,5
 K68-180 180 185 15 15,2 180,6 0,2 3,5
 K68-180/1 180 186 19 19,2 180,6 0,2 3,5
 K68-190 190 195 15 15,2 190,6 0,2 3,5
 K68-195 195 200 15 15,2 195,6 0,2 3,5
 K68-200 200 206 19 19,2 200,6 0,2 3,5
 K68-200/1 200 205 15 15,2 200,6 0,2 3,5
 K68-210 210 216 19 19,2 210,6 0,2 3,5
 K68-220 220 226 19 19,2 220,6 0,2 3,5

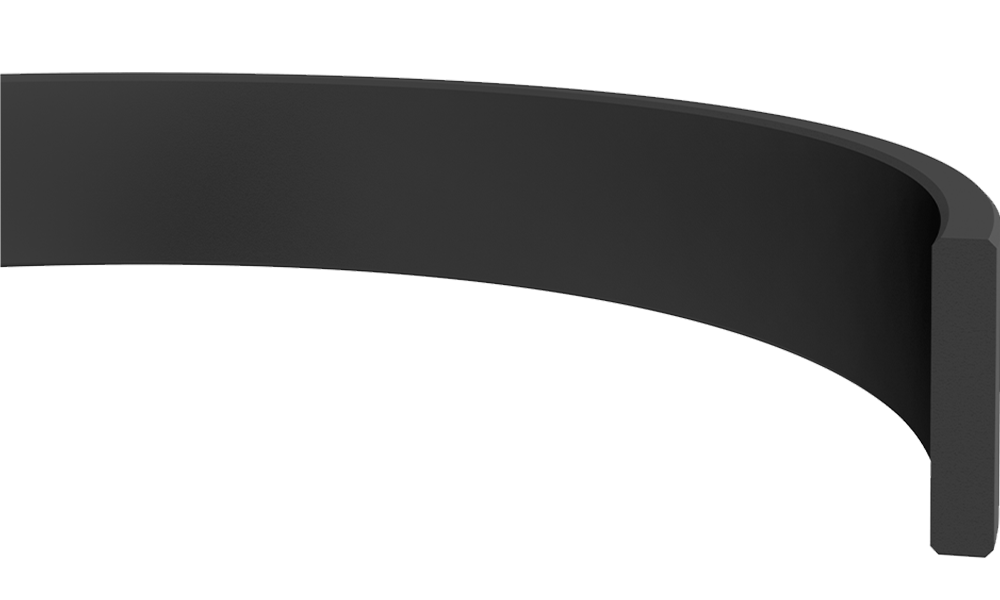

K68 is a guide ring designed to be used for rod applications.

PRODUCT ADVANTAGES
• Easy , snap-in fitting
• Medium load-bearing capacity
• Prevents hydrodynamic pressure due to the K interval
• Very good dimension stability during operation temperatures
• Chamfered edges prevent pressing into the corner radiiof the groove
• Wide range of dimensions
• Economical guiding solution

APPLICATION
Construction machinery , cranes , injection moulding machines , agricultural machinery , light to medium duty cylinders.

MATERIAL CODE
POM (Special filled) PM9902
OPERATING CONDITIONS
MEDIA Mineral oils (DIN 51524)  HFA ve HFB HFC
TEMPERATURE -40°C +100°C +5°C +50°C -30°C +40°C
CONTACT PRESSURE     ≤40 N/mm2 ≤40 N/mm2 ≤40 N/mm2
SPEED ≤1.0 m/sn ≤1.0 m/sn ≤1.0 m/sn
Note: The above data are maximum values and cannot be used at the same time.



SURFACE ROUGHNESS Ra Rmax
Sliding Surface Ød ≤0.4 µm ≤4 μm
Groove Base   ØD ≤2.5 µm ≤10 µm
Groove Flanks  B ≤3.2 µm ≤15 µm

INSTALLATION
Easily assembled into the housing by hand. It is very important that the assembly tools must be of soft material and have no sharp edges. Before installation the wiper must be oiled with system oil.

NOTES
When designing the cylinder K68 guide ring should be placed where it has direct contact with the media. K68 is not suitable for dry working conditions. Surface contact pressure value might drop due to the temperature increase.


  • Kastaş
    • Hydraulic Sealing Elements
    • Pneumatic Sealing Elements
    • Guiding Elements
    • Static Sealing Elements
    • Special Sealing Elements
    • SmartSeal Custom-Made Machined Seals
  • Wingberk
  • Winkel
  • Corteco
  • Skt
  • Loxeal
  • Q Oil
  • Best
  • by Best
  • Promak
  • Oring World
  • Ems Force
Catalog
Catalog
Download
Corporate
  • About Us
  • Vision
  • Mission
Products
  • Hydraulic Sealing Elements
  • Pneumatic Sealing Elements
  • Guiding Elements
  • Static Sealing Elements
  • Special Sealing Elements
  • SmartSeal Custom-Made Machined Seals
Follow

© 2020 CKS Sealing Elements.
