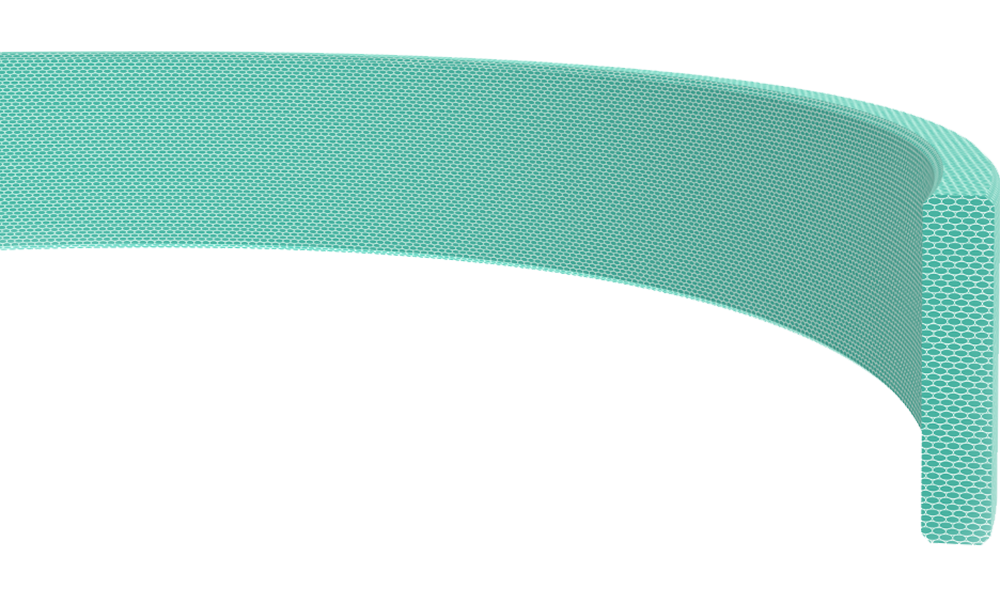

K73 - PistonRodGuide Ring
  • General Features
  • Technicial Specifications
   KASTAŞ NO d(f8) dp (h8) Db(H8) D(H9) B(-0/+0,2) b d1 (h9) D1 (H9) k
 K73-021 21 25 9,5 9,3 24 22 1
 K73-025/1 25 28 5,6 5,4 27 26 1,5
 K73-030 30 35 9,7 9,5 33,2 31,8 1
 K73-035 35 40 15 14,8 38,2 36,8 1
 K73-035/1 35 40 9,7 9,5 38,2 36,2 1,5
 K73-040/1 40 45 9,7 9,5 43,2 41,8 1,5
 K73-040/2 40 45 15 14,8 43,2 41,8 1,5
 K73-040/3 40 43 5,6 5,4 42 41 1,5
 K73-040/5 40 45 5,6 5,4 43,2 41,8 1,5
 K73-045 45 50 9,7 9,5 48,2 46,8 1,5
 K73-045/1 45 50 15 14,8 48,2 46,8 1,5
 K73-045/2 45 50 5,6 5,4 48,2 46,8 1,5
 K73-050 50 55 9,7 9,5 53,2 51,8 2
 K73-050/1 50 55 15 14,8 53,2 51,8 2
 K73-050/2 50 54 10 9,8 53 51 2
 K73-050/3 50 55 5,6 5,4 53,2 51,8 2
 K73-055 55 60 15 14,8 58,2 56,8 2
 K73-055/1 55 60 9,7 9,5 58,2 56,8 2
 K73-055/3 55 60 5,6 5,4 58,2 56,8 2
 K73-058 58 63 9,7 9,5 61,2 59,8 2
 K73-058/1 58 63 5,6 5,4 61,2 59,8 2
 K73-060 60 65 15 14,8 63,2 61,8 2,5
 K73-060/1 60 65 9,7 9,5 63,2 61,8 2,5
 K73-060/2 60 65 20 19,8 63,2 61,8 2,5
 K73-060/3 60 65 25 24,5 63,2 61,8 2,5
 K73-065 65 70 15 14,8 68,2 66,8 2,5
 K73-065/1 65 70 9,7 9,5 68,2 66,8 2,5
 K73-065/2 65 70 5,6 5,4 68,2 66,8 2,5
 K73-070 70 75 9,7 9,5 73,2 71,8 2,5
 K73-070/1 70 75 15 14,8 73,2 71,8 2,5
 K73-074 74 80 6,5 6,3 77,6 76,4 2,5
 K73-075 75 80 9,7 9,5 78,2 76,8 2,5
 K73-075/1 75 80 15 14,8 78,2 76,8 2,5
 K73-075/2 75 80 5,6 5,4 78,2 76,8 2,5
 K73-080 80 85 9,7 9,5 83,2 81,8 2,5
 K73-080/1 80 85 15 14,8 83,2 81,8 2,5
 K73-080/3 80 85 25 24,5 83,2 81,8 2,5
 K73-084 84 90 6,5 6,3 87,6 86,4 2,5
 K73-085 85 90 9,7 9,5 88,2 86,8 2,5
 K73-085/1 85 90 15 14,8 88,2 86,8 2,5
 K73-085/2 85 90 5,6 5,4 88,2 86,8 2,5
 K73-090 90 95 15 14,8 93,2 91,8 2,5
 K73-090/1 90 95 9,7 9,5 93,2 91,8 2,5
 K73-094 94 100 6,5 6,3 97,6 96,4 2,5
 K73-095 95 100 9,7 9,5 98,2 96,8 2,5
 K73-095/1 95 100 15 14,8 98,2 96,8 2,5
 K73-095/2 95 100 5,6 5,4 98,2 96,8 2,5
 K73-100 100 105 15 14,8 103,2 101,8 3,5
 K73-100/1 100 105 9,7 9,5 103,2 101,8 3,5
 K73-105 105 110 9,7 9,5 108,2 106,8 3,5
 K73-105/1 105 110 15 14,8 108,2 106,8 3,5
 K73-105/2 105 110 5,6 5,4 108,2 106,8 3,5
 K73-109 109 115 6,5 6,3 112,6 111,4 3,5
 K73-110 110 115 9,7 9,5 113,2 111,8 3,5
 K73-110/1 110 115 15 14,8 113,2 111,8 3,5
 K73-113 113 118 15 14,8 116,2 114,8 3,5
 K73-115 115 120 9,7 9,5 118,2 116,8 3,5
 K73-115/1 115 120 15 14,8 118,2 116,8 3,5
 K73-120 120 125 9,7 9,5 123,2 121,8 3,5
 K73-120/1 120 125 15 14,8 123,2 121,8 3,5
 K73-122 122 130 15 14,8 127 125 3,5
 K73-122/1 122 130 25 24,5 127 125 3,5
 K73-125 125 130 9,7 9,5 128,2 126,8 3,5
 K73-125/1 125 130 15 14,8 128,2 126,8 3,5
 K73-125/2 125 133 9,7 9,5 130 128 3,5
 K73-130 130 135 9,7 9,5 133,2 131,8 3,5
 K73-130/1 130 135 15 14,8 133,2 131,8 3,5
 K73-130/2 130 135 25 24,5 133,2 131,8 3,5
 K73-135 135 140 9,7 9,5 138,2 136,8 3,5
 K73-135/1 135 140 15 14,8 138,2 136,8 3,5
 K73-136 136 140 20 19,8 139 137 3,5
 K73-140 140 145 9,7 9,5 143,2 141,8 3,5
 K73-140/1 140 145 15 14,8 143,2 141,8 3,5
 K73-140/2 140 148 15 14,8 145 143 3,5
 K73-142 142 147 15 14,8 145,2 143,8 3,5
 K73-145 145 150 9,7 9,5 148,2 146,8 3,5
 K73-145/1 145 150 15 14,8 148,2 146,8 3,5
 K73-150 150 155 15 14,8 153,2 151,8 3,5
 K73-150/1 150 155 9,7 9,5 153,2 151,8 3,5
 K73-155 155 160 9,7 9,5 158,2 156,8 3,5
 K73-155/1 155 160 15 14,8 158,2 156,8 3,5
 K73-160 160 168 25 24,5 165 163 3,5
 K73-160/1 160 165 15 14,8 163,2 161,8 3,5
 K73-160/2 160 165 9,7 9,5 163,2 161,8 3,5
 K73-164 164 170 9,7 9,5 167,2 166,8 3,5
 K73-165 165 170 9,7 9,5 168,2 166,8 3,5
 K73-165/1 165 170 25 24,5 168,2 166,8 3,5
 K73-170 170 175 15 14,8 173,2 171,8 3,5
 K73-175 175 180 9,7 9,5 178,2 176,8 3,5
 K73-175/1 175 180 15 14,8 178,2 176,8 3,5
 K73-180 180 185 15 14,8 183,2 181,8 3,5
 K73-185 185 190 9,7 9,5 188,2 186,8 3,5
 K73-185/1 185 190 15 14,8 188,2 186,8 3,5
 K73-185/2 185 191 20 19,8 188,6 187,4 3,5
 K73-192 192 200 15 14,8 195,2 196,8 3,5
 K73-192/1 192 197 15 14,8 195,2 193,8 3,5
 K73-194 194 200 20 19,8 197,6 196,4 3,5
 K73-195 195 200 9,7 9,5 198,2 196,8 3,5
 K73-195/1 195 200 15 14,8 198,2 196,8 3,5
 K73-200 200 205 15 14,8 203,2 201,8 4,5
 K73-200/1 200 208 15 14,8 205 203 4,5
 K73-205 205 210 15 14,8 208,2 206,8 4,5
 K73-215 215 220 15 14,8 218,2 216,8 4,5
 K73-220 220 225 15 14,8 223,2 221,8 4,5
 K73-220/1 220 225 25 24,5 223,2 221,8 4,5
 K73-225 225 230 15 14,8 228,2 226,8 4,5
 K73-235 235 240 9,7 9,5 238,2 236,8 4,5
 K73-235/1 235 240 15 14,8 238,2 236,8 4,5
 K73-240 240 245 15 14,8 243,2 241,8 4,5
 K73-245 245 250 9,7 9,5 248,2 246,8 4,5
 K73-245/1 245 250 15 14,8 248,2 246,8 4,5
 K73-255 255 260 15 14,8 258,2 256,8 4,5
 K73-265 265 270 15 14,8 268,2 266,8 4,5
 K73-274 274 280 20 19,8 277,6 276,4 4,5
 K73-274/1 274 280 30 29,5 277,6 276,4 4,5
 K73-275 275 280 9,7 9,5 278,2 276,8 4,5
 K73-275/1 275 280 15 14,8 278,2 277 4,5
 K73-280 280 285 15 14,8 283,2 281,8 4,5
 K73-280/1 280 285 25 24,5 283,2 281,8 4,5
 K73-285 285 290 25 24,5 288,2 286,8 4,5
 K73-295 295 300 15 14,8 298,2 296,8 4,5
 K73-315 315 320 15 14,8 318,2 316,8 4,5
 K73-340 340 345 25 24,5 343,2 341,8 4,5
 K73-345 345 350 25 24,5 348,2 346,8 4,5
 K73-355 355 360 25 24,5 358,2 356,8 4,5
 K73-360 360 365 25 24,5 363,2 361,8 4,5

K 73 is a piston - rod guide ring designed to be used in heavy duty hydraulic and pneumatic systems.

PRODUCT ADVANTAGES
• High load bearing capacity
• Minimum static and dynamic friction coefficient for a minimum energy loss and operating temperature
• Able to be used behind the sealing element on dry condition
• High dimension stability during the operating temperatures
• Easy assembly
• Wide range of dimensions

APPLICATION
Mobile hydraulics , excavators , mining equipment , marine hydraulics , presses and heavy duty cylinders.

MATERIAL CODE
POLYESTER RESIN PR6501
OPERATING CONDITIONS
MEDIA Mineral oils(DIN 51524)  HFA ve HFB HFC
TEMPERATURE -40°C +120°C +5°C +60°C -40°C +40°C
DYNAMIC CONTACTPRESSURE ≤100 N/mm2 ≤100 N/mm2 ≤100 N/mm2
SPEED ≤1.0 m/sn ≤1.0 m/sn ≤1.0 m/sn
Note: The above data are maximum values and cannot be used at the same time. Surface contact pressure value is given for dynamic application and it is 330 N/mm2 for static applications .



SURFACE ROUGHNESS Ra Rmax
Sliding Surface  ØD-Ød ≤0.4 µm ≤3.2 μm
Groove Base  ØDb-Ødp ≤1.6 µm ≤10 µm
Groove Flanks  B ≤3.2 µm ≤14 µm

INSTALLATION
Easily assembled into the housing by hand. It is very important that the assembly tools must be of soft material and have no sharp edges. Before installation the wiper must be oiled with system oil.

NOTES
To avoid hydrodynamic pressure k interval is given.
