K780

  • Home
  • Kastaş
  • Guiding Elements
  • K780

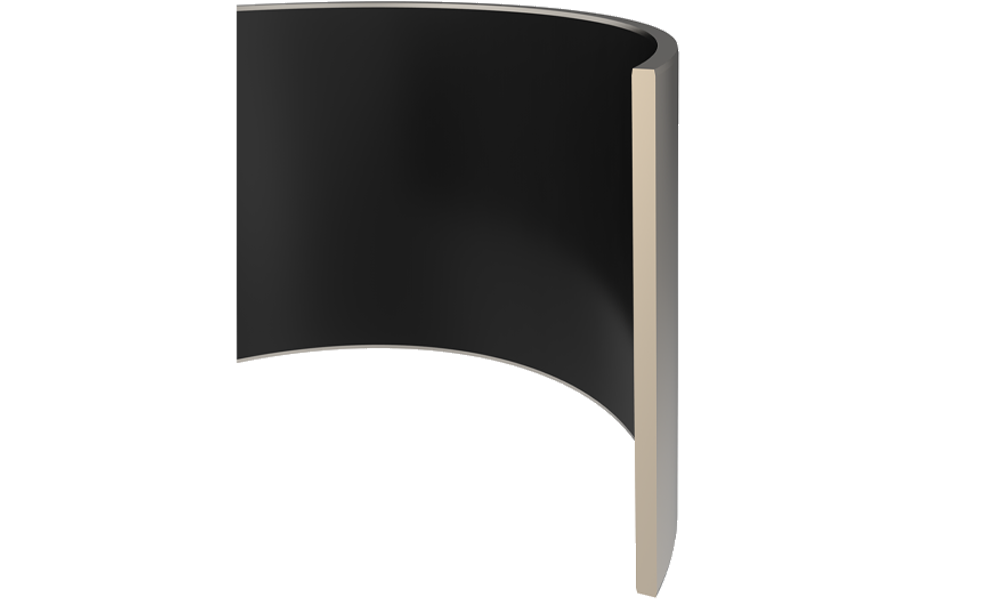

K780 - Carbon Steel Bushing
  • General Features
  • Technicial Specifications
   Kastaş Nod(f7)D(H7)LS3
 K780-0454550302,4825
 K780-0505055302,4825
 K780-0606065202,4825
 K780-060/16065302,4825
 K780-060/26065402,4825
 K780-060/36065502,4825
 K780-060/46065602,4825
 K780-0707075302,4825
 K780-070/17075402,4825
 K780-070/27075502,4825
 K780-070/37075802,4825
 K780-0757580302,4825
 K780-075/17580402,4825
 K780-0808085302,465
 K780-080/18085402,465
 K780-0858590302,465
 K780-085/18590402,465
 K780-0909095302,465
 K780-090/19095402,465
 K780-09595100302,465
 K780-095/195100402,465
 K780-095/295100602,465
 K780-100100105302,465
 K780-100/1100105302,465
 K780-105105110602,465
 K780-115115120352,465
 K780-120120125352,44
 K780-125125130502,44
 K780-140140145402,44
 K780-150150155402,44
 K780-150/1150155502,44
 K780-160160165402,44
 K780-160/1160165802,44

Kastaş K780 bushings used high quality low-carbon steel plate as base , sintered porous bronze as its interlayer and the compound of PTFE as its surface. It offers the property of good self-lubricaiton , low wear , low friction , good sliding characteristics , low noise.


PRODUCT ADVANTAGES
• Working under oilless or minim oil state condition
• Abrasion Resistance
• Low fricton coefficient and long service life
• Good thermal conductivity and size stability
• Forms a transferred film during operation to protect shaft
• High load resistance

MATERIAL STRUCTURE
PTFE with mixture
Porous bronze
Steel backing
Tin-plating

TECHNICAL DATA
Max. Load Static Very low speed Rotating oscillating 250 N/mm² 140 N/mm² 60 N/mm²
Max. PV (dry running) Short-term operation Continuous operation 3.6 N/mm².m/s   1.8 N/mm².m/s
Temp. Limit -195°C~+280°C
Friction Coefficient   0.05~0.02 μ
Max. Speed Dry Running Hydrodynamic operation 2 m/s 5 m/s
Thermal conductivity 42 W(m.k)-¹
Coefficient of thermal expansion   11x10-6 .K-¹
