K82

  • Home
  • Kastaş
  • Static Sealing Elements
  • K82

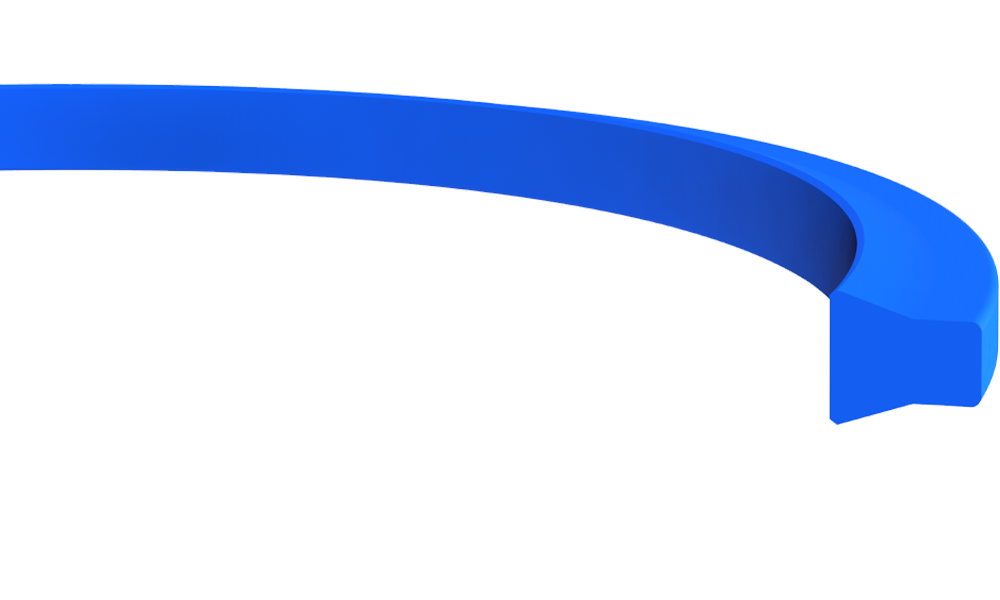

K82 - Flange Seal
  • General Features
  • Technicial Specifications
   KASTAŞ NO d D(-0/+0.2) H(±0.05) B(±0.5) b
 K82-017 17 25.4 2.85 4.2 3.5
 K82-023.40 23.4 31.8 2.85 4.2 3.5
 K82-031.30 31.3 39.7 2.85 4.2 3.5
 K82-036.10 36.1 44.5 2.85 4.2 3.5
 K82-045.40 45.4 53.8 2.85 4.2 3.5
 K82-055 55 63.4 2.85 4.2 3.5

K82 is a flange seal profile specially designed for static sealing of SAE flanges.

PRODUCT ADVANTAGES
• Able to work in high pressures
• Interchangeable for o-ring
• Functions even with poor surfaces
• Easy and secure installation
• High wear resistance
• High reliability

APPLICATION
Used in SAE type of flanges and valve blocks.

MATERIAL CODE
PU 95 SHORE A PU9401
OPERATING CONDITIONS
MEDIA Mineral oils (DIN 51524)  HFA ve HFB HFC
TEMPERATURE -30°C +100°C +5°C +50°C -30°C +40°C
PRESSURE ≤600 Bar ≤600 Bar ≤600 Bar
Note: The above data are maximum values and cannot be used at the same time.



SURFACE ROUGHNESS Ra Rmax
Sliding Surface ≤0.4 µm ≤6.3 μm
Groove Surface ≤3.0 µm ≤25 µm

INSTALLATION
Easily assembled by hand. The surface of the flanges should be dried prior to installation. It is very important that the assembly tools must be of soft material and have no sharp edges. Before installation the sealing element must be oiled with system oil.
