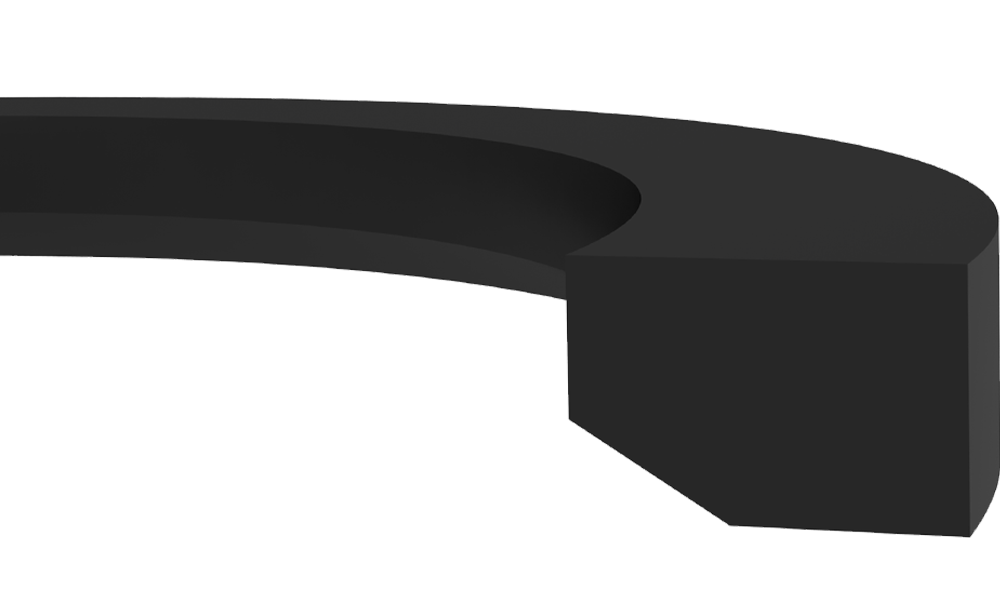

K87 - Fluid Connector Seal
| KASTAŞ NO | d(f7) | D(H8) | b |
|---|---|---|---|
| K87-010 | 8,4 | 11,9 | 1 |
| K87-012 | 9,8 | 14,4 | 1,5 |
| K87-014 | 11,6 | 16,5 | 1,5 |
| K87-016 | 13,8 | 18,9 | 1,5 |
| K87-017 | 14,7 | 18,9 | 1,5 |
| K87-018 | 15,7 | 20,9 | 1,5 |
| K87-020 | 17,8 | 22,9 | 1,5 |
| K87-021 | 18,5 | 23,9 | 1,5 |
| K87-022 | 19,6 | 24,3 | 1,5 |
| K87-027 | 23,9 | 29,2 | 1,5 |
| K87-033 | 29,7 | 35,7 | 2 |
| K87-042 | 38,8 | 45,8 | 2 |
| K87-048 | 44,7 | 50,7 | 2 |
 | |||||||||||||||
| K87 fluid connector seal is specially designed for static applications. ADVANTAGES • Long service life with superior sealing performance • No twisting in the groove • Dimensional stability under pressure • Provides better sealing performance compared to metal-metal application APPLICATION Threaded fasteners | |||||||||||||||
| |||||||||||||||
| |||||||||||||||
| |||||||||||||||
| SURFACE ROUGHNESS | Ra | Rmax | |||
| Sliding Sur ØD | ≤0.8 µm | ≤3.2 μm | |||
| Groove Base Ød | ≤1.6 µm | ≤6.3 µm | |||
| Groove Flanks B | ≤6.3 µm | ≤16 µm | |||
| INSTALLATION Attention must be paid not to deform the product during the assembly over thread; assembly tools must be used when needed. | |||||
